Transient Outlet Temperature Prediction
GT-SUITE predicts water temperature at the heater outlet throughout the full transient cycle, giving engineers accurate performance data across real-world draw patterns and operating conditions.
Solutions
Water Heater
Model, analyze, and optimize gas-fired, heat pump, electric, tankless, boiler, and hybrid water heater systems within a single simulation platform.
Solution Overview
Simulation-Driven Water Heater Development
Water heater development involves complex thermal interactions that are difficult and costly to evaluate through physical testing alone. GT-SUITE provides a complete simulation environment built on a proven thermal-fluid platform, supporting fast and accurate steady-state and transient analysis across gas-fired, heat pump, tankless, electric, boiler, and hybrid configurations.
Engineers can adjust key design variables directly within the model, including tank geometry, dip tube dimensions, electric element placement, insulation properties, and burner design, to evaluate performance trade-offs without building physical prototypes . The 1D/3D approach runs complete transient simulations in minutes, making it practical to perform virtual testing against standard ratings such as UEF, first hour rating, and recovery efficiency.
GT-SUITE integrates naturally alongside 3D CFD tools, with each approach applied where it delivers the most value. Modeling the full system at multiple fidelity levels allows teams to identify optimal designs through simulation rather than trial-and-error testing, reducing physical test cycles and accelerating development decisions.
Application Highlights
Accelerating Water Heater Development
- Produce results fast. As opposed to 3D CFD, GT-SUITE’s 1D/3D solution allows the entire transient system to run in minutes to optimize designs.
- Perform virtual testing and reduce dependency on physical tests, including 24-hour UEF number, first hour rating, recovery efficiency, Tref and V40 ratings.
- The pre-defined water heater model allows quick learning and easy inputs.
- Test various water heater control strategies, accounting for variable water draws, water heating on/off modes, and variable heat sources (electric, gas, heat pump).
- Study performance sensitivity to: electric heating element location, thermocouple location, dip tube entry height, insulation properties , and more.
- Optimize components, including burners, heat exchangers, tank geometry, and more.
Advanced Water Heater Simulation Capabilities
Accelerate water heater development through virtual testing, design exploration, and system optimization.
3D Tank Temperature Distribution

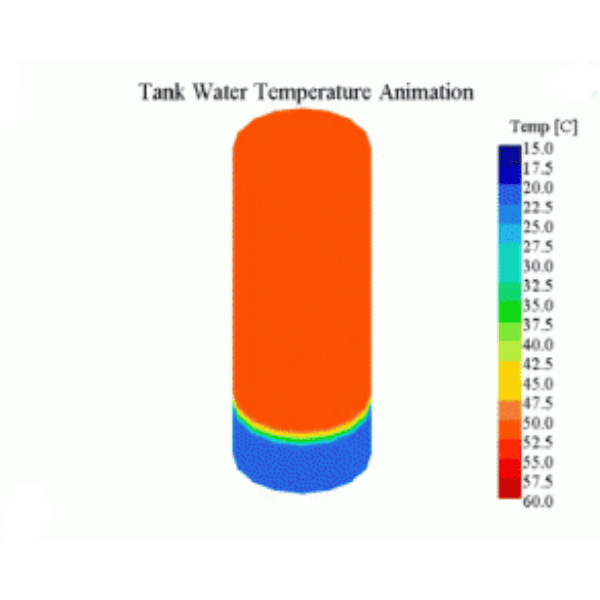

The model resolves spatial temperature gradients within the storage tank, capturing the physical dynamics of thermal stratification, mixing, and buoyancy-driven flow that 1D-only approaches cannot represent.
Full Transient Heat Pump Cycle Simulation

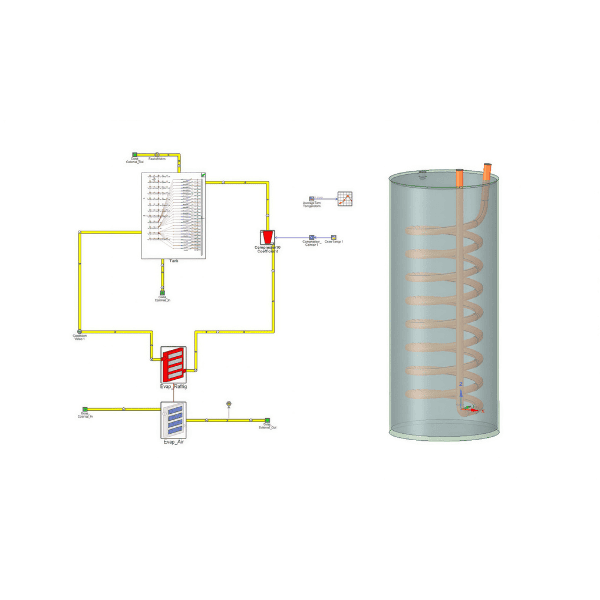

For heat pump water heaters, GT-SUITE models the complete 2-phase refrigerant cycle in transient conditions, resolving pressures, temperatures, and fluid properties throughout the system at every time step.
Virtual UEF and Ratings Testing
Engineers can run virtual tests against standard regulatory metrics, including the Uniform Energy Factor, first hour rating, recovery efficiency, TREF, and V40, reducing dependence on physical test lab time.
Configurable Tank Physics
Key physical parameters, including mixing factor, buoyancy factor, electric element placement, and dip tube entry height, are directly adjustable within the model, enabling rapid sensitivity studies without rebuilding the simulation.
Fast System-Level Transient Runs
The 1D/3D hybrid approach runs complete transient water heater simulations in minutes, making it practical to evaluate a wide design space and iterate on control strategies, heat source configurations, and component geometry within a normal engineering schedule.
Water Heater FAQs
Find answers to common questions about water heater simulation, testing, and optimization.
-
What types of water heaters can be modeled in GT-SUITE?
GT-SUITE supports a broad range of water heater configurations, including gas-fired, electric, heat pump, tankless, boiler, and hybrid systems . The same simulation environment handles all of these, so engineering teams working across multiple product lines do not need to maintain separate tools or workflows.
-
Can GT-SUITE replace physical testing for regulatory ratings such as UEF?
Standard performance metrics, including the Uniform Energy Factor (UEF), first hour rating, recovery efficiency, Tref, and V40, can be evaluated through virtual testing using GT-SUITE. While physical certification testing still applies, simulation significantly reduces the number of physical test iterations needed to reach a compliant, optimized design.
-
How does GT-SUITE fit into an existing design workflow that already uses 3D CFD?
Built to complement 3D CFD tools rather than replace them, GT-SUITE enables engineers to perform full system-level transient analysis and design space exploration, then apply 3D CFD where detailed local flow resolution is required, with each tool used where it delivers the most value.
-
How long does a typical water heater simulation take to run?
The 1D/3D approach is designed to run complete transient system simulations in minutes, not hours . This makes it practical to evaluate multiple design variants, control strategies, and operating conditions within a normal engineering schedule rather than waiting on overnight runs.
