GT-3D Vehicle Mechanics

In order to ensure an optimal design for rider comfort, GT-SUITE offers a detailed solution for evaluating high fidelity vehicle dynamics and handling

Talk to an Expert

PRODUCT OVERVIEW

Customized Modeling Solutions

A rich library of customized control, mechanical and hydraulic model-based components empowers users to create an advanced vehicle model including subsystems in order to assess their interaction at higher stages of development and/or validation. All subsystem models can be easily interchanged within the GT-SUITE platform.

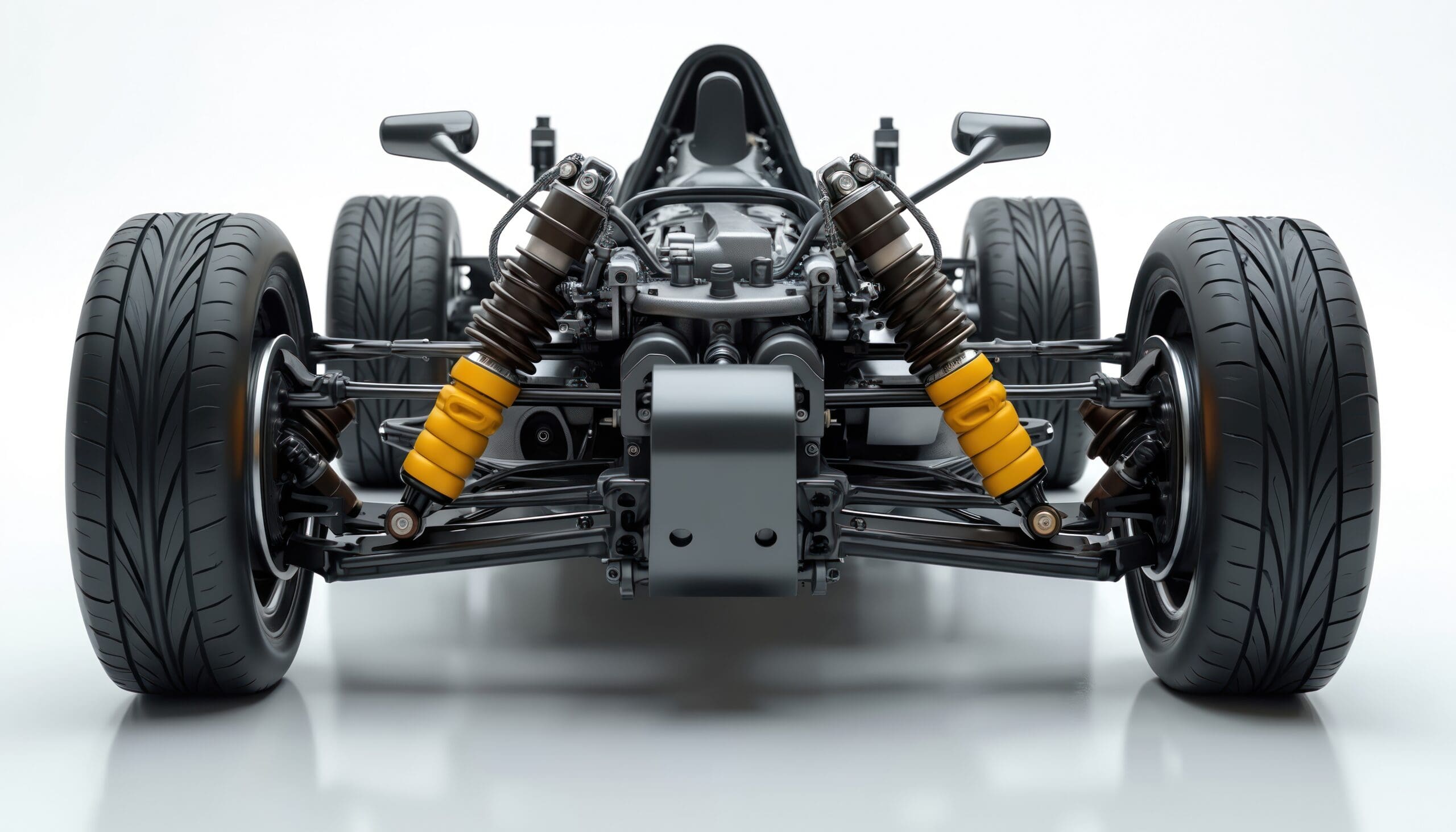

Close-up on formula car front suspension assembly with tires. Shows shock absorbers springs struts control arms and steering components. Detailed view of automotive engineering.

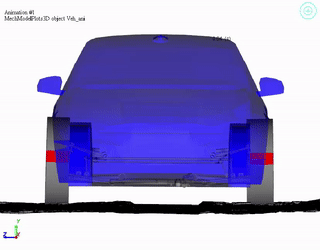

3D_Vehicle_gif_2

GENERATE & INTEGRATE PREDICTIVE POWERTRAIN MODELS

Dedicated Tire Characterization

Combine GT-SUITE comprehensive template libraries such as engine and transmission for dedicated tire characterization.

By capturing excitations from both the road and the powertrain altogether, these models are used to perform accurate and efficient vehicle dynamics and driveline noise, vibration and harshness (NVH) evaluations.

Suv technical drawing showing undercarriage.
3D-Vehicle-Mechanics

APPLICATION HIGHLIGHTS

3D Vehicle Mechanics

  • Formal Multibody Dynamics (MBD) mechanical solution methodology, with a fully predictive 3D vehicle solution
  • Integration of 1D to 3D mechanics to understand coupled phenomena (NVH, Shift Quality, Driveability) via access to multiple libraries
  • Detailed model-based solution for different subsystems (brakes, suspension, powertrain mounts, driver controls, powertrain subsystems)
  • Model ANY type of suspension: A-Arm, H-Arm, McPherson
  • Integrate ANY type of powertrain architecture: AWD, FWD, RWD, HEV, EV including any transmission architecture AT, MT, AMT, DCT, CVT, IVT, and new, innovative concepts with chassis and suspension
Battery EV Electric Vehicle Energy Technology, The overhead view of an electric car chassis with a transparent body reveals battery, suspension, and drivetrain components.

FEATURES

check mark icon

CAD Preprocessing Tools

GEM3D and SpaceClaim CAD preprocessing tools for building 3D rigid body models.

check mark icon

3D Stress Analysis

3D stress analysis of suspension components using 3D FEA.

check mark icon

3D Outputs

Output 3D visualization of suspension and chassis.

check mark icon

Rapid Elastomer Damper Characterization

Elastomer damper model based on Maxwell solid approach to rapidly characterize powerplant mounts.

check mark icon

Self-Generated Tire Maps with 3D Pacejka

Self-generated tire maps using the 3D Pacejka approach.

check mark icon

Physics-Based Tire Modeling with FTIRE

Integration with FTIRE, a physics-based, 3D nonlinear tire model.

check mark icon

DOE for System-Level Design Optimization

Built-in DOE to optimize anything from component-level to the complete system model, such as powerplant mount location or suspension characteristics.
