Industries
Aerospace
Supporting thermal, fluid, and propulsion system modeling for aircraft and spacecraft applications.
Aerospace Simulation Solutions
Simulations for Electric and Turbine Aircraft
Gamma Technologies is the developer of GT-SUITE, the industry-leading Model Based Systems Engineering (MBSE) CAE system simulation software. GT-SUITE provides a comprehensive set of validated 0D/1D/3D multi-physics component libraries, which simulate the physics of fluid flow, thermal, mechanical, multi-body, structural, electrical, magnetic, chemistry, and controls.
Utilizing combinations of these libraries, accurate models can be built of practically any system such as turbines, burners, hydraulic systems, fuel systems, landing gears, environmental control systems, cryogenic systems and many more. All this makes GT-SUITE a leading aerospace engineering software.
Interact with our Aircraft and know more
PROPULSION SYSTEM MODELING
GT-SUITE can assist engineers in the design and development of,
•Gas turbines, electric, and hybrid propulsion systems
•Many configurations including single and dual spool, turbofan, turbo prop, APU, piston engines and more
•Comprehensive controls library to perform tasks like limiting turbine inlet temperatures
•Equilibrium or kinetic chemistry for combustion modeling
•Compressor surge modeling
•Link to NPSS via Simulink for co-sim to existing engine decks
https://staging.gtisoft.com/aircraft-engine-systems-2/
PROPULSION SYSTEM MODELING
GT-SUITE can assist engineers in the design and development of,
•Gas turbines, electric, and hybrid propulsion systems
•Many configurations including single and dual spool, turbofan, turbo prop, APU, piston engines and more
•Comprehensive controls library to perform tasks like limiting turbine inlet temperatures
•Equilibrium or kinetic chemistry for combustion modeling
•Compressor surge modeling
•Link to NPSS via Simulink for co-sim to existing engine decks
https://staging.gtisoft.com/aircraft-engine-systems-2/
LANDING GEAR DEVELOPMENT
Landing gears, hydraulics and braking can be completely developed within GT-SUITE. Engineers can model,
•Hydraulic actuation of landing gear extension and retraction events
•Hydraulics coupling to 1D, 2D, or 3D rigid or flexible body mechanics for complete landing gear dynamics
•Design landing gear oleo struts for optimal design
•Actuators
•Detailed pump dynamics
•FPMU
•Water hammer effects
https://staging.gtisoft.com/landing-gear-2/
LANDING GEAR DEVELOPMENT
Landing gears, hydraulics and braking can be completely developed within GT-SUITE. Engineers can model,
•Hydraulic actuation of landing gear extension and retraction events
•Hydraulics coupling to 1D, 2D, or 3D rigid or flexible body mechanics for complete landing gear dynamics
•Design landing gear oleo struts for optimal design
•Actuators
•Detailed pump dynamics
•FPMU
•Water hammer effects
https://staging.gtisoft.com/landing-gear-2/
DEVELOP BATTERY PACKS AND MORE
GT-SUITE can serve as a single platform to develop multiple components and integrate them as a system. Engineers can use this tool for,
Detailed battery modeling:
•Electrochemistry
•Predictive State of Charge
•Predictive State of Health

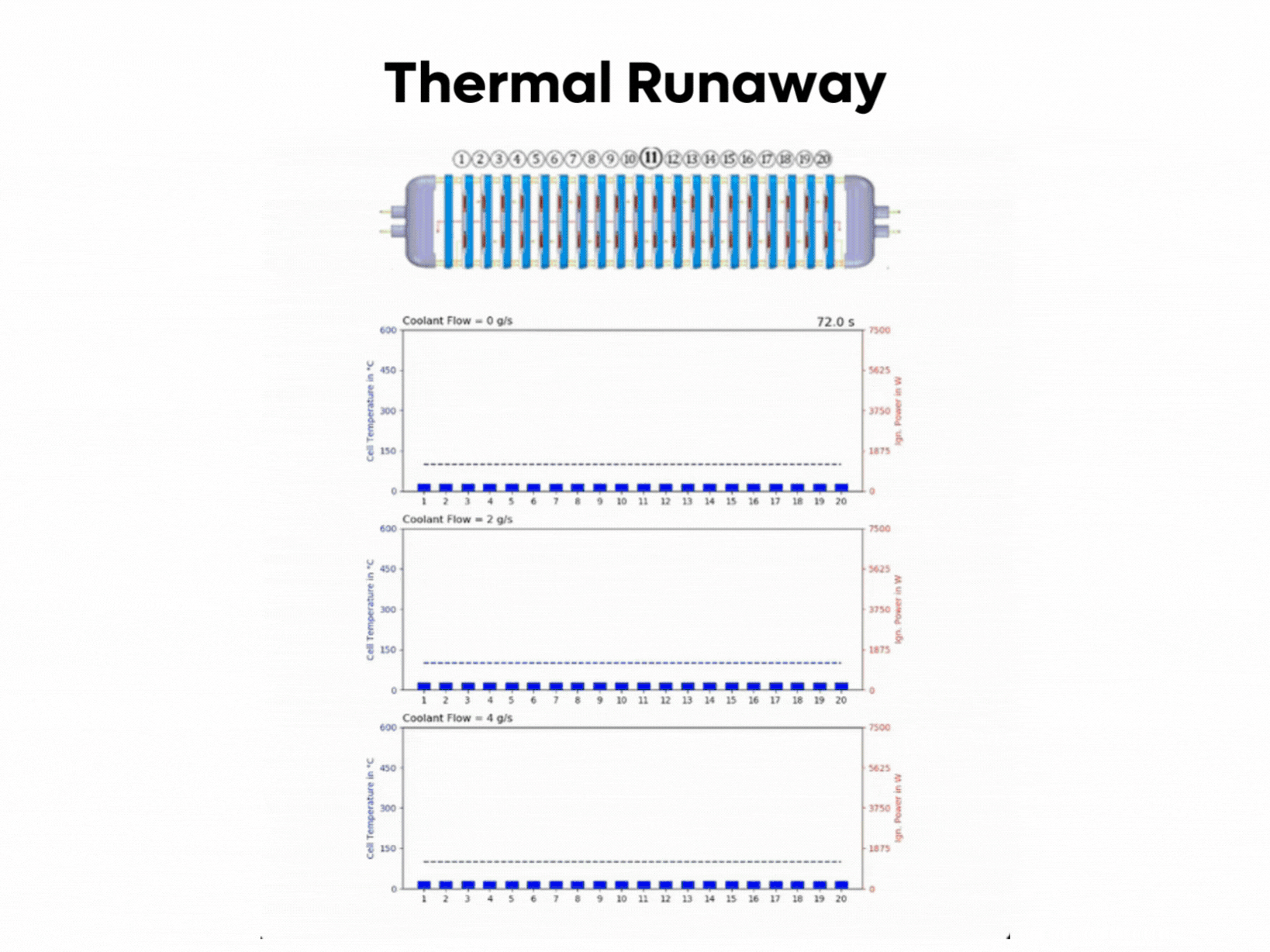

•Thermal runaway
Explore different electrified concepts including:
•Battery and motor layouts
•Fuel cells
•Hybrid approaches
•Electric components
Thermal Management of Electrical Components
https://staging.gtisoft.com/gt-autolion/
https://staging.gtisoft.com/cryogenic-fluid-and-thermal-systems-2/
ENVIRONMENTAL CONTROL SYSTEM MODELING
GT-SUITE can help engineers in modeling and evaluating,
•ECS ducting pressure losses, thermal, flow distribution and velocities in ducting
•Various valve types
•Heat exchangers
•Humidity and temperature tracking
•Transient compressible Navier-Stokes solution
•Integrate cabin with ducting and air cycle machine
•Add controls to regulate cabin temperature and humidity
•Detailed human comfort modeling
https://staging.gtisoft.com/environmental-control-systems-2/
FUEL TANK MODELING
With the use of GT-SUITE engineers can obtain powerful predictions for
•Fuel transfer during flight
•Weight & center of gravity
•Tank free surface in 3D
•Filling and venting
•Integration with OBIGGS
•Thermal loading for flammability, freezing, and spillage
https://staging.gtisoft.com/aircraft-fuel-systems-2/
FLIGHT CONTROLS
GT-SUITE can help engineers in modeling and evaluating,
•Hydraulic or electromechanical actuation
•Electric systems
•Hydraulic systems including water-hammer
•Transient dynamics and controls
Simulating Tomorrow's Vehicles Today
How GT Solutions Aid In Developing eVTOLs
Gamma Technologies offers a solution for detailed electric powertrain design and simulation. Combined with Advanced Rotorcraft Technologies’ (ART) FLIGHTLAB for comprehensive rotorcraft analysis, a coupling between FLIGHTLAB and GT-SUITE provides an easy-to-use, holistic solution for simulation-supported system design during the early design stages of eVTOLs.
Simulation Features
Powerful Simulation Features Include:
Highly Scalable
To solve large systems containing thousands of components, with fast execution speed and robustness
Full range of system analyses
performance the full range of systems analysis from the initial set of requirements to detailed component design, to system integration, to control, HiL and calibration, and even to on-board CPU model based control
Robust Navier-Stokes solver
GT-SUITE offers simulations based on Navier-Stokes flow solution, which simultaneously solves conservation of mass, momentum, energy and species, and is uniquely stable
Full 3D analyses capabilities
A system simulation tool at its core, strengthened by capability to perform full 3D analysis (CAD, FEA, CFD)
3D-2D-1D Multi Body components
GT-SUITE’s 3D-2D-1D Multi Body components are integrated with the surrounding multi-physics systems which provide their boundary conditions
Automatically create flow, thermal & mechanical 1D and 3D models
Automatically creates flow, thermal and mechanical 1D and 3D models from 3D CAD solids
Built-in DOE and optimization
GT-SUITE offers a built-in DOE and optimization package, and offers links with leading third party optimization tools
Exceptional Value
GT-SUITE offers an exceptional value: runs models of complex integrated systems using just one license.
