GT-SCORG

Powerful Screw Compressor System Simulation Solution

Talk to an Expert EXPLORE ALL PRODUCTS

Product Overview

What is GT-SCORG?

GT-SCORG combines the geometry calculation capabilities of industry-leading screw machine design software, SCORG (developed by PDM Analysis), with the multi-physics and system modeling capabilities of GT-SUITE. With GT-SCORG, screw machine manufacturers have a one-stop, integrated solution for simulating the performance of a screw machine in the complete system.

GT-SCORG is integrated directly in GT-SUITE and is the result of a long-term collaborative development between GT and PDM Analysis.

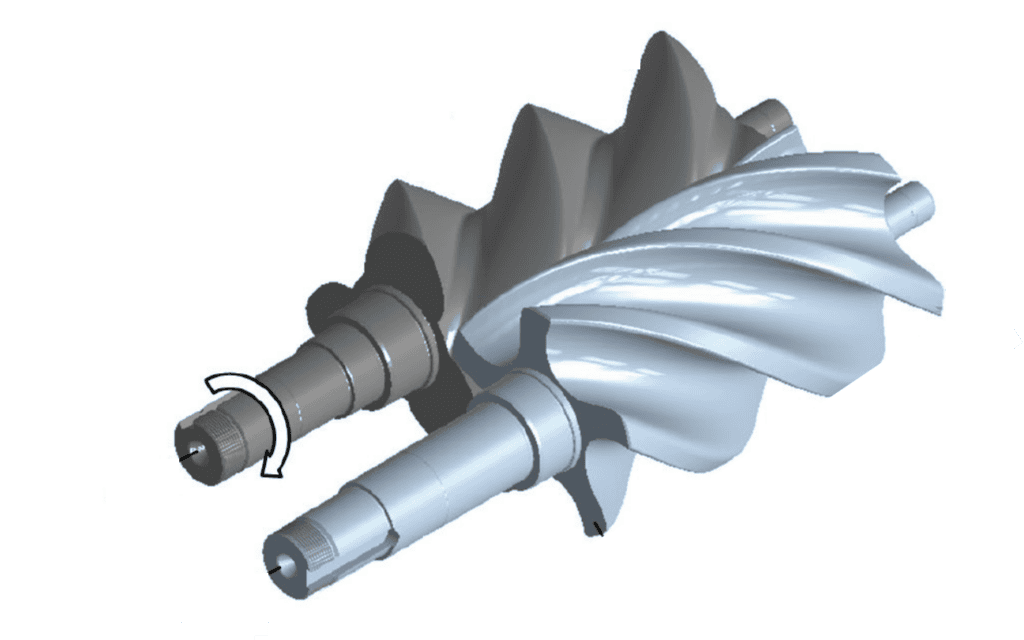

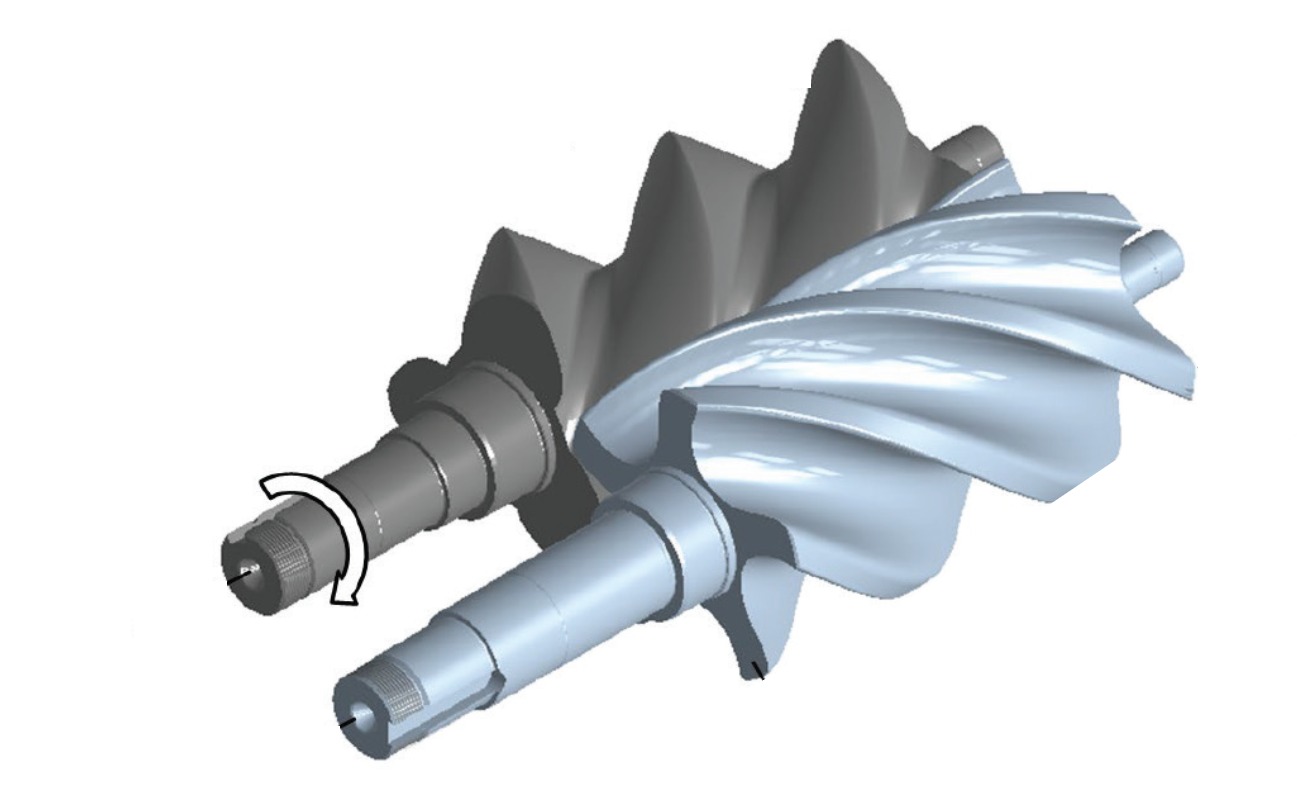

Screw Machine simulation with GT-SCORG

PRODCUTIVITY IS THE KEY

Ease of Use with GT-SCORG

With GT-SCORG, engineers can easily simulate a screw machine. Starting from the rotor geometry, GT-SCORG automatically generates profiles of the chamber volume, leakage areas, and port areas, as well as a ready-to-use GT-SUITE model. Engineers can evaluate and predict the thermodynamics, flow rates (accounting for internal leakages), and power consumption.

GT-SCORGE Product Animation

ANALYZE THE ENTIRE SYSTEM

Multi-Physics Systems Simulation

When designing a screw compressor, it is important to consider not only the thermodynamic performance of the machine but also the performance of the entire system.

After creating a screw machine model, engineers can leverage the system simulation capabilities of GT-SUITE to analyze additional components including:

  • Oil and cooling circuits
  • Valves
  • Mufflers
  • Bearings
  • Shaft and gear dynamics
  • Electric motors

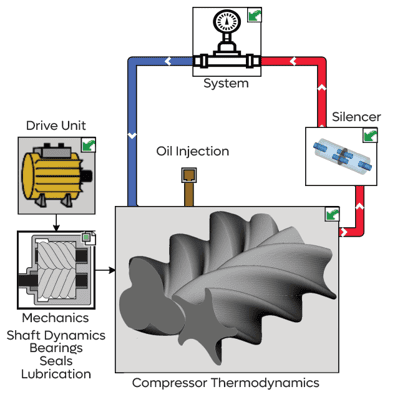

GT-SCORG Full System Simulation
GT-SCORGE Product Animation

Advanced Features

Screw Machine Modeling Capabilities

check mark icon

Thermodynamic Modeling

Study thermodynamics within the screw machine, including the chambers, suction port, and discharge port.

check mark icon

Flow Prediction

Predict flow rates, accounting for internal leakages.

check mark icon

Performance Prediction

Predict torque, power, and efficiency.

check mark icon

Refrigerant Drop-in Studies

Perform refrigerant drop-in studies to meet regulation requirements.

check mark icon

System-level Optimization

Optimize a screw machine considering the entire system, including vibration, thermal effects, and acoustics

check mark icon

Digital Twin

Develop a digital twin for condition monitoring and fault detection.

check mark icon

Automated Rotor Optimization

Pair with GT-AUTOMATION to perform rotor optimization by varying rotor geometry, port timing and shape, and more using GT-SUITE’s integrated optimizer.
