Transmissions

GT-SUITE is the ideal tool for evaluating transmission component and system design and controls.

Talk to an Expert View All Solutions

Solution Overview

Accurate Powertrain Predictions

GT-SUITE allows complete transmission system simulation, including shift strategy generation, powerflow specification, thermal warmup and lubrication studies, and shift quality and noise, vibration and harshness (NVH) evaluations.

Through integration with other GT-SUITE libraries, such as engine and vehicle, completely predictive powertrain models can be generated.  Additional modeling detail can be added through the general multibody dynamics GT-SUITE library, which enables evaluation of more detailed component-level behavior, including finite element models.

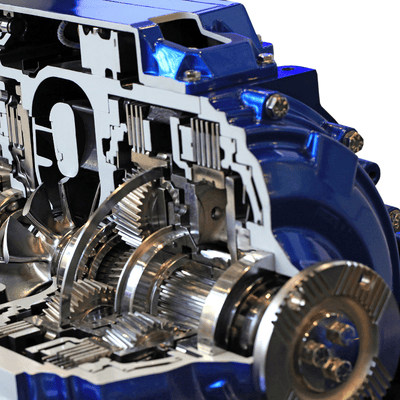

transmission

Application Highlights

Comprehensive Transmission Analysis

  • Model ANY type of transmission: AT, MT, AMT, DCT, CVT, IVT, and new, innovative concepts
  • Formal Multibody Dynamics (MBD) mechanical solution methodology
  • Thermal hydraulics with aeration and species transport
  • Powerflow layout and transmission design
  • Loss prediction, lubrication, and thermal management
  • Shift quality and driveability
  • NVH studies and torsional vibration analysis
  • Real-time capable models for controls development
  • Fully integrated with other GT-SUITE libraries
  • Integrated with ROMAX Designer

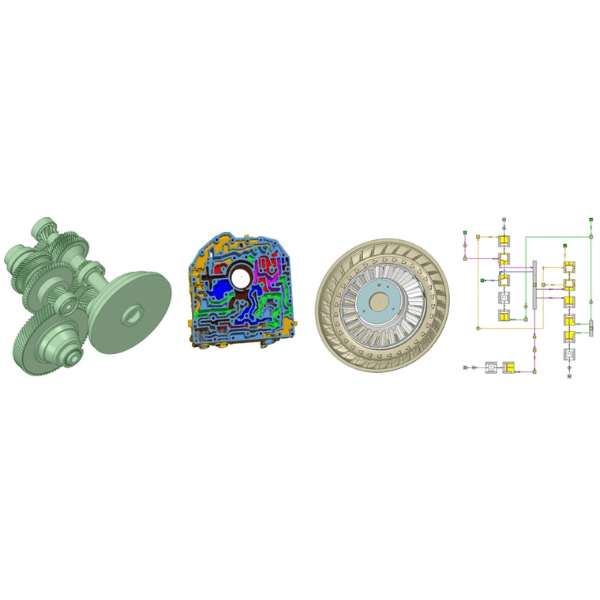

TransmissionModeling_Banner_JZ

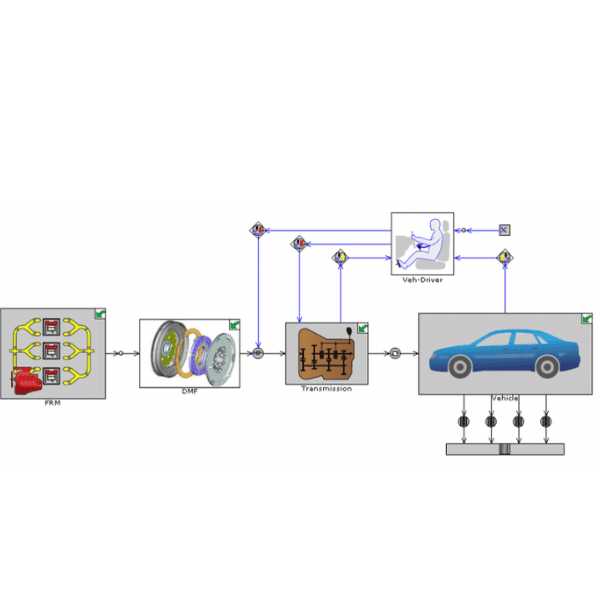

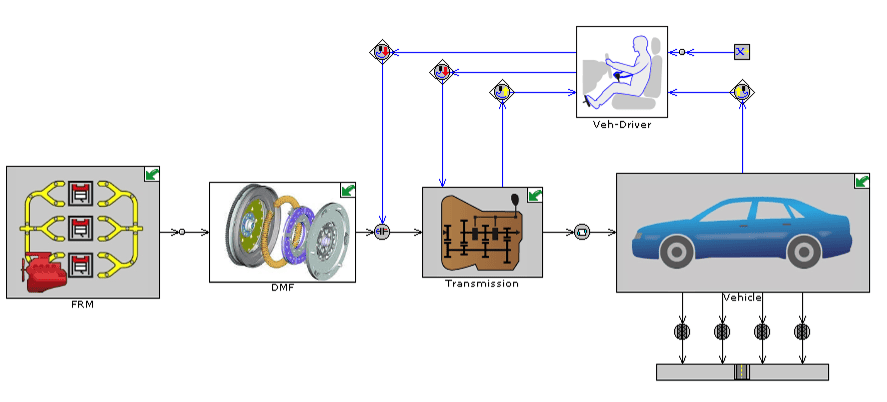

GT-SUITE-Engine-Transmission-Model

Advanced Features

Integrated Transmission Design and Analysis Tools

Accelerate transmission development with comprehensive simulation tools for design, optimization, and validation.

check mark icon

Unified Hydraulics and Mechanics Simulation

Model hydraulic circuits and mechanical components together in one environment. This eliminates co-simulation overhead for faster, more accurate predictions of clutch engagement and shift behavior.

check mark icon

Direct ROMAX Integration for Gear and Bearing Dynamics

Automatically import ROMAX Dynamic Fusion Models to bring high-fidelity gear and bearing dynamics directly into your transmission simulation, streamlining the workflow from component design to full-system analysis.

check mark icon

Scalable Fidelity: From 1D System to Full FE Models

Extend models from efficient 1D simulation to 2D/3D and finite element representations without rebuilding the architecture, adding structural detail precisely where it's needed.

check mark icon

Predictive Electro-Magnetic Solenoid Modeling

Simulate the electrical and magnetic behavior of solenoids to predict actuation force and response with high accuracy. This enables fully predictive hydraulic control system design without relying on simplified lookup tables.

check mark icon

Component-Level Thermal Analysis

Capture thermal behavior of individual components, including clutches, gears, and bearings, to evaluate heat generation, thermal limits, and warm-up performance within the full system model.

check mark icon

CAD-Integrated Model Building and Visualization

Use GEM3D and SpaceClaim to discretize hydraulic flow paths directly from CAD geometry, then visualize gear and synchronizer behavior with dedicated output tools. This reduces setup time and improves result interpretation.

Transmissions FAQs

Find answers to common questions about transmission modeling, controls integration, thermal analysis, shift quality, and system-level simulation in GT-SUITE.

  • What types of transmissions can GT-SUITE simulate?

    GT-SUITE supports the full spectrum of transmission architectures, including automatic (AT), manual (MT), automated manual (AMT), dual-clutch (DCT), continuously variable (CVT), infinitely variable (IVT), and emerging novel concepts. Whether you are refining an existing production design or exploring a new topology, the same modeling environment handles the complete system, from powerflow layout and shift strategy through thermal management and NVH evaluation.

  • Can GT-SUITE model the hydraulic control system alongside the mechanical transmission?

    Yes. GT-SUITE integrates hydraulic and mechanical modeling within a single simulation environment, so actuation system behavior, including clutch engagement, pressure regulation, and solenoid response, is captured in direct interaction with the mechanical drivetrain. This eliminates the approximations of separate co-simulation tools and provides more accurate predictions of shift quality and control system performance.

  • Is GT-SUITE suitable for developing and validating transmission control strategies?

    Built for controls development, the platform supports real-time capable models for Model-in-the-Loop (MiL), Software-in-the-Loop (SiL), and Hardware-in-the-Loop (HiL) workflows. Control logic can be implemented using native control components in GT-SUITE, integrated with Simulink, or connected to external control systems, giving development teams the flexibility to validate strategies at every stage of the program.

  • Can GT-SUITE models be used for controls development and hardware-in-the-loop testing?

    Real-time capable transmission models support Model-in-the-Loop (MiL), Software-in-the-Loop (SiL), and Hardware-in-the-Loop (HiL) workflows. In GT-SUITE, the same model used for system design and shift quality evaluation can be carried forward into controls validation, reducing the need to rebuild or simplify models at different stages of development.
