Physics-Based Wave Dynamics Analysis
Analyze the effect of pressure wave dynamics on system performance and stability, enabling engineers to identify and resolve pulsation and resonance issues early in the design process.
Solutions
Hydraulics and Fuel Injection
Accurately predict pressure pulsations, valve dynamics, and leakage, powered by GT-SUITE's validated component library and CAD-based model building.
Solution Overview
Accurate Modeling
GT-SUITE’s advanced Navier-Stokes flow solver provides the physical foundation for highly accurate hydraulic and fuel injection simulations, making it the preferred choice for OEMs and suppliers worldwide.
The extensive library of validated, application-specific components supports models across a wide range of complexity, from system-level models with imposed component characteristics to detailed component-level models capturing fluid-structure interaction, leakage, cavitation, aeration, and gas transport.

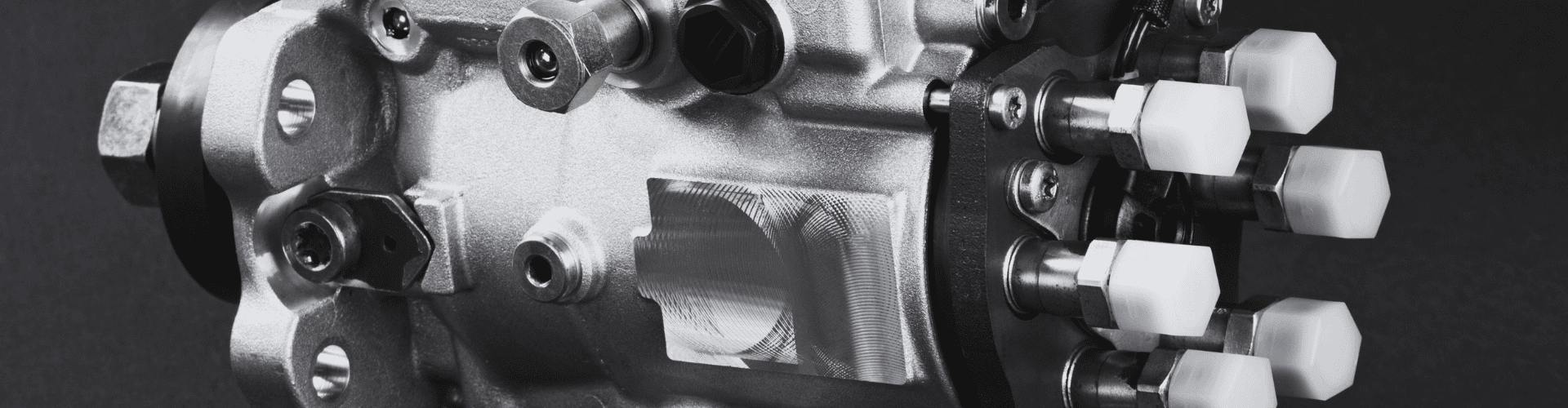

Within the engine domain, GT-SUITE is widely used for fuel injection (gasoline, diesel, and alternative fuels), hydraulic variable valve actuation, cam phasing, and compression release engine braking. Typical predictions include pressure pulsation, flow rates, valve dynamics, fluid and structure temperatures, leakage, and contact stresses.
Hydraulic models integrate seamlessly with other GT-SUITE sub-systems, including engine, valvetrain, and thermal models, enabling full system optimization and accurate capture of cross-domain interactions.
Application Highlights
Physics-Based Hydraulic Simulation
- Accurate pressure wave dynamics (water hammer) solved with the advanced Navier-Stokes flow solver
- Extensive library of validated, application-specific components for rapid and reliable model construction

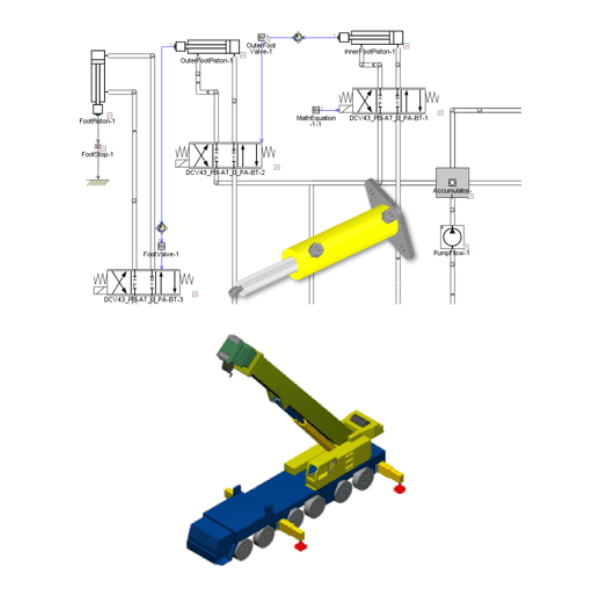

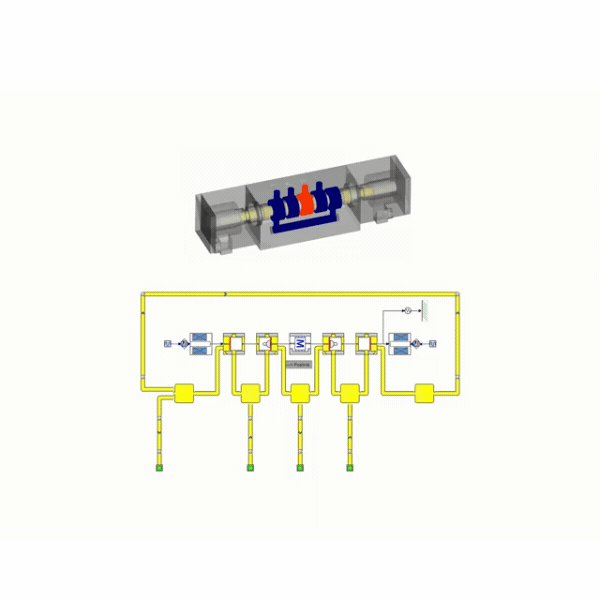

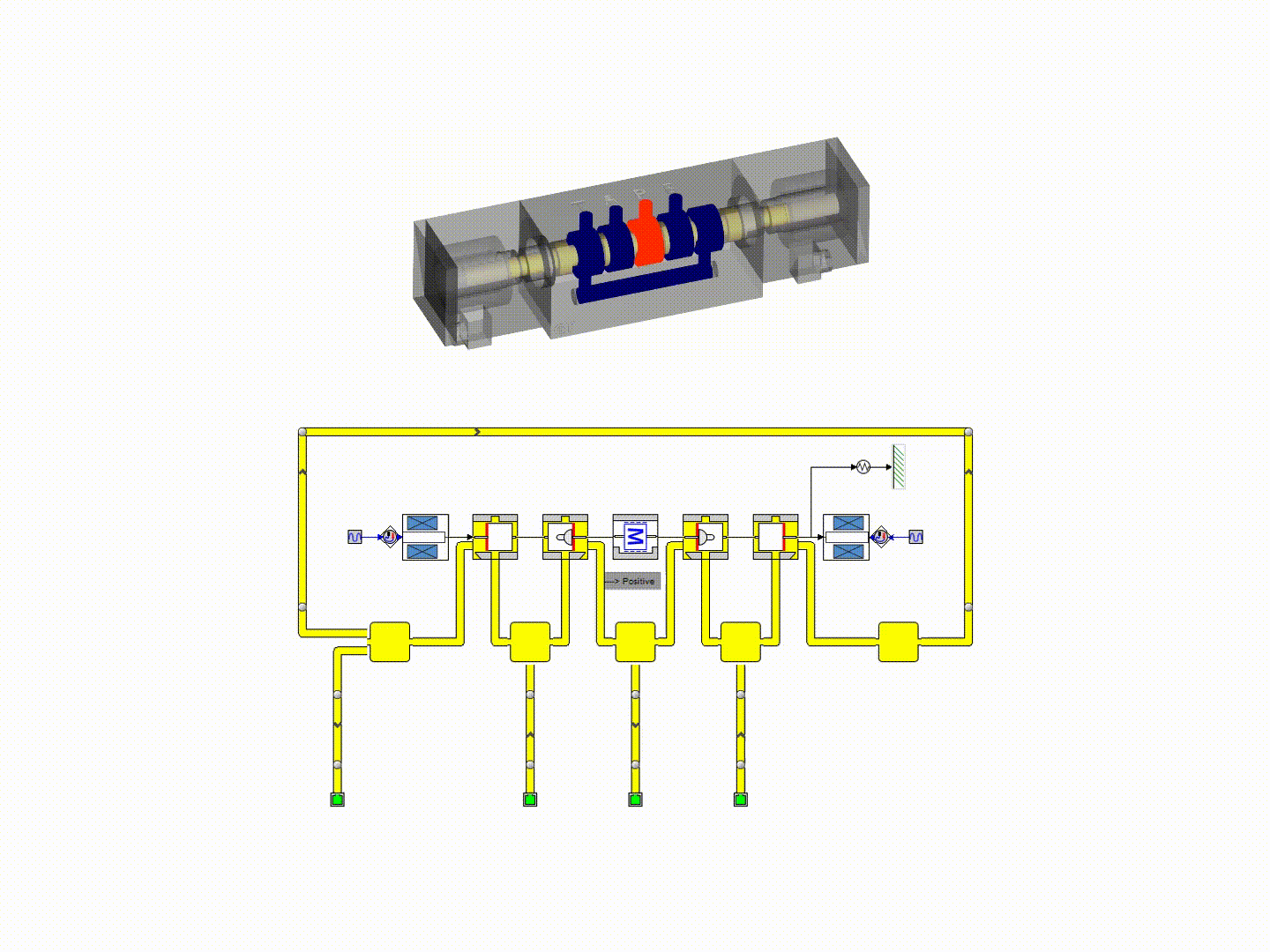

- System and component level modeling, including valves, detailed pumps, and compressors across a full range of fidelity
- Fluid-structure interaction with fully integrated 1D, 2D, or 3D mechanics
- Prediction of fluid and structure temperatures throughout the system
- Automated model building directly from CAD geometry using GEM3D
- Unsteady, frequency-dependent flow friction for high-fidelity transient simulations
- Cavitation, aeration (free and dissolved gas), and gas transport modeling
Advanced Simulation Capabilities
Purpose-built tools for high-fidelity actuator modeling, fluid-structure coupling, and system-level co-simulation — enabling deeper insight into performance, stability, and control.
Seamless GT-POWER Engine Integration
Hydraulic models connect directly with GT-POWER engine models, enabling fully coupled system simulations that capture the interactions between fuel injection, valve actuation, and engine performance.
CFD Coupling for Fluid-Structure Interaction
Co-simulate with CFD solvers to resolve complex fluid-structure interaction phenomena, delivering higher fidelity results where 1D modeling alone is insufficient.
Detailed Solenoid and Piezo Actuator Modeling
Accurately simulate solenoid and piezoelectric actuators with full hysteresis modeling, enabling precise prediction of actuator response in fuel injection and hydraulic control systems.
Advanced Bearing and Squeeze Film Damping Models
Multiple bearing models, including finite element hydrodynamic (FE HD) solutions, combined with accurate squeeze damping for any geometry using general FE film solvers, deliver high-fidelity mechanical interaction predictions.
Linear and Frequency Domain Analysis
Perform linear and frequency analysis directly within the hydraulic simulation environment, enabling rapid assessment of system stability, resonance behavior, and control system response.
Hydraulics & Fuel Injection FAQs
Get answers to common questions about modeling hydraulic systems, fuel injection performance, transient flow behavior, and system integration with GT-SUITE.
-
What types of hydraulic and fuel injection systems can GT-SUITE simulate?
GT-SUITE supports a broad range of applications, from diesel and gasoline fuel injection systems (common rail and unit pump) to hydraulic variable valve actuation, cam phasing, compression release engine braking, and general hydraulic circuits. Models can range from system-level representations with imposed component characteristics to detailed component-level models that capture fluid-structure interaction, leakage, and transient dynamics.
-
How accurate are GT-SUITE's pressure wave and transient flow predictions?
Built on one-dimensional, compressible, unsteady fluid dynamics, GT-SUITE’s advanced Navier-Stokes flow solver delivers accurate pressure wave dynamics, including water hammer and high-frequency pulsation behavior critical to fuel injection performance. The solver has been extensively validated against experimental data across a wide range of fuel system configurations.
-
Can GT-SUITE model complex fluid behaviors such as cavitation and aeration?
Fully integrated models for cavitation, aeration (both free and dissolved gas), and gas transport are applicable everywhere in the system. Combined with frequency-dependent friction modeling and fluid-structure interaction capabilities, these features ensure that real-world operating conditions are accurately represented rather than approximated.
-
How does GT-SUITE integrate hydraulic models with engine and vehicle systems?
Hydraulic models in GT-SUITE connect directly with GT-POWER engine models, multi-body dynamics, and thermal management systems, enabling fully coupled simulations that capture cross-domain interactions. Detailed injector models can also be integrated with predictive combustion models, allowing engineers to assess the impact of fuel system behavior on engine performance and emissions within a single simulation environment.
